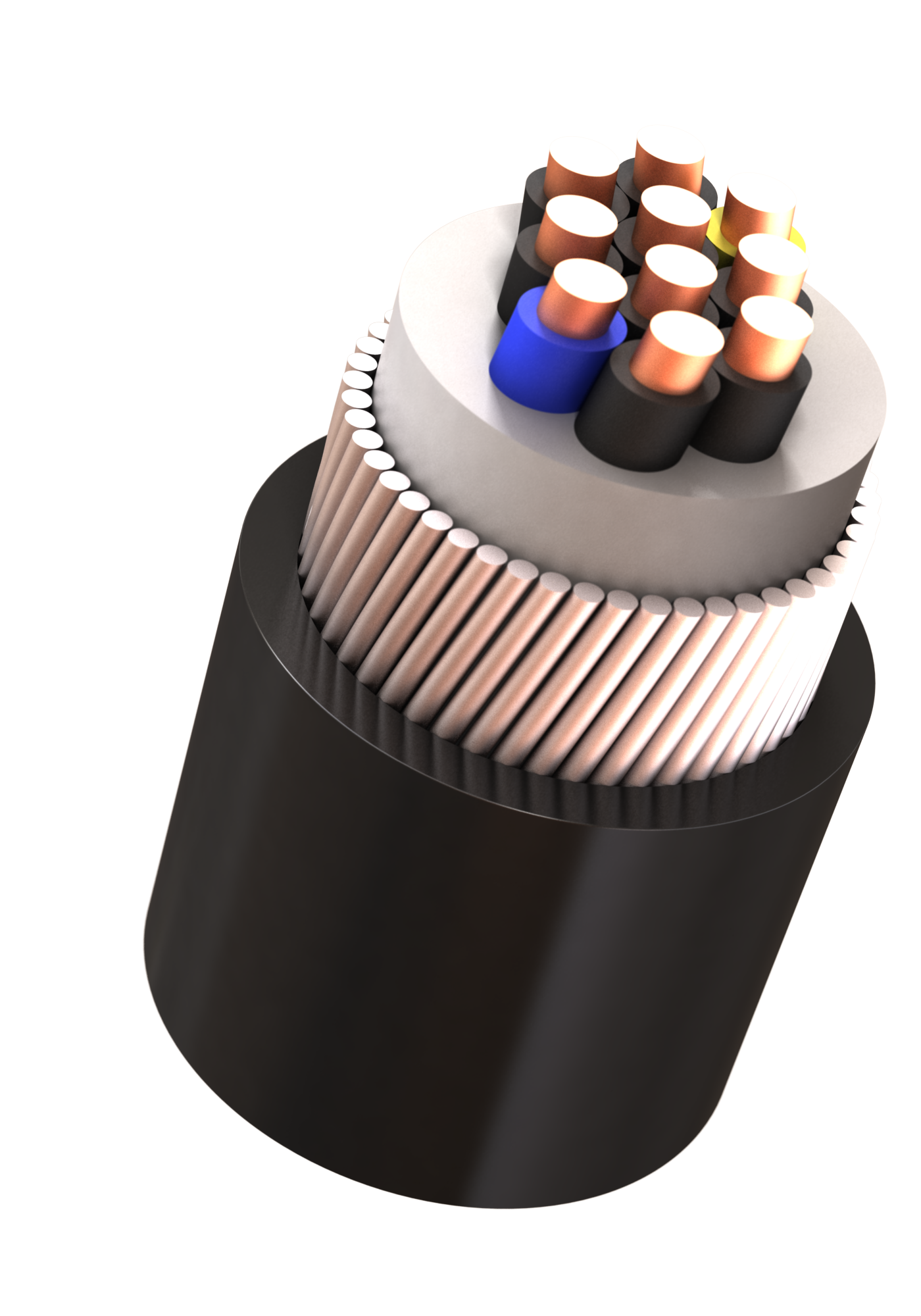

Armored Power Cables with PVC Insulation and Sheath (NYRY,NYBY)

Features

Annealed copper Class 1 (wire) and Class 2 (semi-sprayed) or Class 5 (sprayed)

According to IEC60228 standard

Can be produced with aluminum or aluminum alloy according to national standard ISIRI3084

PVC blended insulation material type A.

Insulation coloring: according to customer's request

Armor made of wire or galvanized steel strip or aluminum

Material of PVC composite coating type ST1 in black color

Descriptions

Used to supply electricity for fixed installation underground, ducts, indoor, indoor and outdoor installations

Suitable for unprotected environments with high risk of mechanical damage and protection

Temperature range -30 to +70 degrees Celsius

Rated voltage 0.6 kV to 1 kV: Low pressure

Test voltage: 3.5 kV (AC)
